Welded wire mesh sheet
| Welded Wire Sheet | ||
| Opening | Wire Diameter | |
| In Inch | In Metric Unite | |
| 1″*1″ 2″*2″ | 50mm*50mm | 1.5,1.6,1.7,1.8mm |
| 1”*1” | 25mm*25mm | 2.5,3.2,4.0mm |
| 2”*2” | 50mm*50mm | 2.5,3.2,4.0,6.0mm |
| 4”*4” | 100mm*100mm | 3.0,4.0,6.0mm |
Welded wire mesh is made of high quality low carbon steel wire, and then electrical galvanized,hot dipped galvanized,PVC coated and so on.
It achieves smooth surface,uniform mesh, firm solder joints, good weather resistance and good corrosion resistance.
Mesh: 1/4″*1/4″ 3/8″*3/8″ 1/2″*1/2″ 5/8″*5/8″ 3/4″*3/4″ 1″*1/2″ 1-1/2″*1-1/2″ 1″*2″ 2″*2;
Welded wire sheet can be used in industry and agriculture building, Transportation and mining for all such purposes as poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence, Mink Cages.

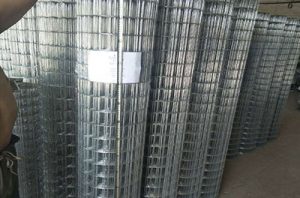

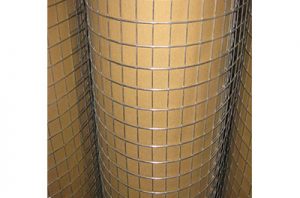

Welded wire mesh roll
| Specification List of Welded Wire Mesh Roll: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In Metric Unit(mm) | |
| 1/4 x 1/4 | 6.4mm x 6.4mm | 22,23,24 |
| 3/8 x 3/8 | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2 x 1/2 | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8 x 5/8 | 16mm x 16mm | 18,19,20,21, |
| 3/4 x 3/4 | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1 x 1/2 | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2 x 1-1/2 | 38mm x 38mm | 14,15,16,17,18,19 |
| 1 x 2 | 25.4mm x 50.8mm | 14,15,16 |
| 2 x 2 | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: | ||
| 1.Standard roll length: 30m;width: 0.5m to 1.8m | ||
| 2.Special sizes available at request | ||

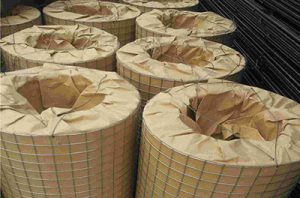

| 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| PVC Coated Welded Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In Metric Unit(mm) | |
| 1/2 x 1/2 | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4 x 3/4 | 19mm x 19mm | 16,17,18,19,20,21 |
| 1 x 1 | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: | ||
| 1.Standard roll length: 30m;width: 0.5m to 1.2m | ||
| 2.Special sizes available at request | ||
| 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
1.Material
Welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated.
It features smooth surface,uniform mesh,highstability and great corrosion resistance.
1-Electro galvanized mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized mesh(welded before galvanized, welded after galvanized)
3-PVC coated mesh(wire dia. of PVC is about 0.4mm)
Galvanized welded mesh has a good resistance to corrosion. Zinc coating can reach 200g/m2.
2.Application
Making machine protective cover, live stock fence, plant fence, window fence, poultry cage, egg basket, house food basket, paper basket, etc.
With the reliable quality and economical price, it is common used in the manufacturing, agriculture, breeding, transportation, mining and other industries.
