0.5-4.0mm Wire 2×2 4×4 8×8 Hot dipped galvanized coated welded wire mesh roll

Brand: CSTAR
Certificate: ISO9001
Origin: CHINA
MOQ: 10 tons
Payment Terms: TT, LC
Supply Ability: 10 Tons/Day
Delivery Time: 15-20 Days
Packaging:
1.water-proof paper inside ,woven bag outside
2.compression rolls
3.in cartons
4.as customer request
Categories:
Welded wire mesh sheet
Welded Wire Sheet
Opening Wire Diameter
In Inch In Metric Unite
1″*1″ 2″*2″ 50mm*50mm 1.5,1.6,1.7,1.8mm
1”*1” 25mm*25mm 2.5,3.2,4.0mm
2”*2” 50mm*50mm 2.5,3.2,4.0,6.0mm
4”*4” 100mm*100mm 3.0,4.0,6.0mm
Welded wire mesh is made of high quality low carbon steel wire, and then electrical galvanized,hot dipped galvanized,PVC coated and so on.
It achieves smooth surface,uniform mesh, firm solder joints, good weather resistance and good corrosion resistance.
Mesh: 1/4″*1/4″  3/8″*3/8″  1/2″*1/2″  5/8″*5/8″  3/4″*3/4″  1″*1/2″  1-1/2″*1-1/2″  1″*2″  2″*2;
Welded wire sheet can be used in industry and agriculture building, Transportation and mining for all such purposes as poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence, Mink Cages.

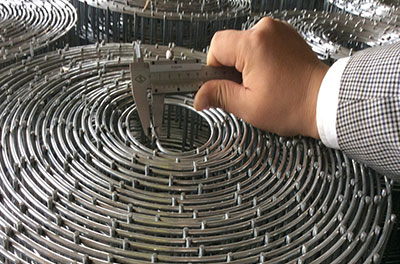

Welded wire mesh roll
Specification List of Welded Wire Mesh Roll:
Opening Wire Diameter<BWG>
In inch In Metric Unit(mm)
1/4 x 1/4 6.4mm x 6.4mm 22,23,24
3/8 x 3/8 10.6mm x 10.6mm 19,20,21,22
1/2 x 1/2 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8 x 5/8 16mm x 16mm 18,19,20,21,
3/4 x 3/4 19.1mm x 19.1mm 16,17,18,19,20,21
1 x 1/2 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2 x 1-1/2 38mm x 38mm 14,15,16,17,18,19
1 x 2 25.4mm x 50.8mm 14,15,16
2 x 2 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh:
Opening Wire Diameter<BWG>
In inch In Metric Unit(mm)
1/2 x 1/2 12.7mm x 12.7mm 16,17,18,19,20,21
3/4 x 3/4 19mm x 19mm 16,17,18,19,20,21
1 x 1 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.



1.Material
Welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated.
It features smooth surface,uniform mesh,highstability and great corrosion resistance.
1-Electro galvanized mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized mesh(welded before galvanized, welded after galvanized)
3-PVC coated mesh(wire dia. of  PVC is about 0.4mm)
Galvanized welded mesh has a good resistance to corrosion. Zinc coating can reach 200g/m2.



2.Application
Making machine protective cover, live stock fence, plant fence, window fence, poultry cage, egg basket, house food basket, paper basket, etc.
With the reliable quality and economical price, it is common used in the manufacturing, agriculture, breeding, transportation, mining and other industries.
